Products Features:
The most widely used concrete pumping line bend pipe.
Good wear resistance and ductility.
Ideal for high pressure pumping environments.
Key Specifications:
Measurement: DN80-3"
Material: ST52
Work Pressure: 160-250 Bar
Flange Ends: SK/HD/FM/ZX or Customize

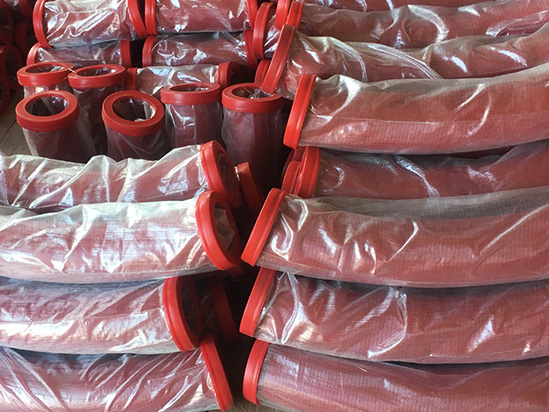

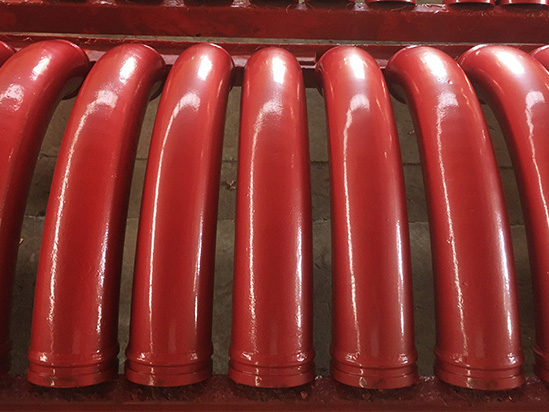

Bend Pipe DN80-3"
| Part NO. | OD In./DIN | Center Line Radius In./mm | Degree of Angle | Theoretical weight(lbs./kg.) |
| BP807545 | 3.0/ DN80 | 7.5/191 | 45 | 10/4.5 |
| BP807590 | 3.0/ DN80 | 7.5/191 | 90 | 14.3/6.5 |
| BP801645 | 3.0/ DN80 | 16/406 | 45 | 14.5/6.6 |
| BP801690 | 3.0/ DN80 | 16/406 | 90 | 23.1/10.5 |
| BP804845 | 3.0/ DN80 | 48/1219 | 45 | 30/13.5 |
| BP804890 | 3.0/ DN80 | 48/1219 | 90 | 59/26.8 |
| Any type of elbow can be customized. | ||||

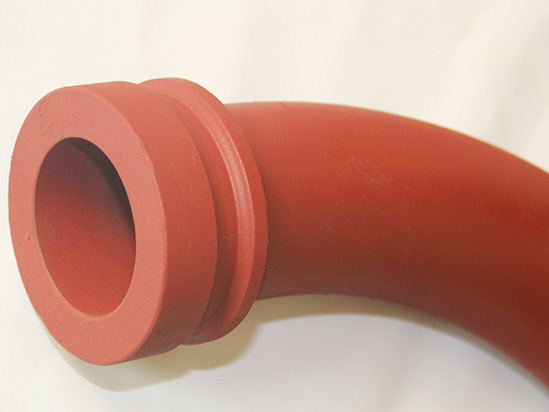

Any types of weld ends are available:
Metric (SK) weld ends
Heavy duty weld ends
Schwing F/M weld ends
Putzmeister Z/X weld ends
