Products Features:

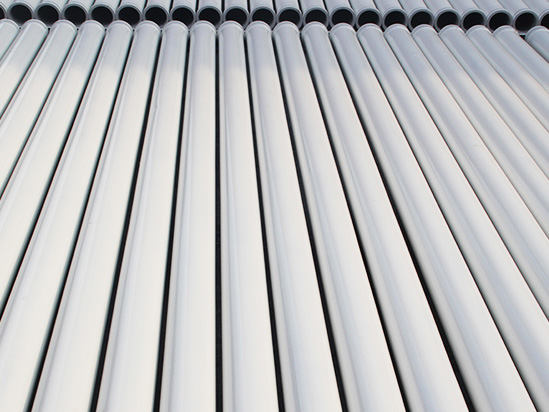

The most widely used concrete pumping line pipe.
Good wear resistance and ductility.
Ideal for high pressure pumping environments.
Key Specifications:
Measurement: DN80/3"
Material: ST52
Work Pressure: 160-250 Bar
Flange Ends: SK/HD/FM/ZX or Customize
ST52 Line Pump Pipe DN80-3" With SK, HD, ZX, FM Flange Ends
| Part Number | Thickness(mm) | Theoretical weight(lbs./kg.)/meter | Length Deviation | Test Pressure | Weld Tensile Strength | Surface Coating |
| ST52-330 | 3 | 14/6.4 | ±1mm | 160bar | ＞360bar | Painting |
| ST52-335 | 3.5 | 16.3/7.4 | ±1mm | 180bar | ＞360bar | Painting |
| ST52-340 | 4 | 18.5/8.4 | ±1mm | 160bar | ＞480bar | Painting |
| ST52-345 | 4.5 | 20.6/9.4 | ±1mm | 180bar | ＞480bar | Painting |
| ST52-350 | 5 | 23.8/10.4 | ±1mm | 250bar | ＞480bar | Painting |
| Length=1000mm Length=2000mm Length=3048mm (Length=120 inch, Length=10 feet) Length=4500mm Length=6000mm ........ Any length and thickness can be customized. | ||||||

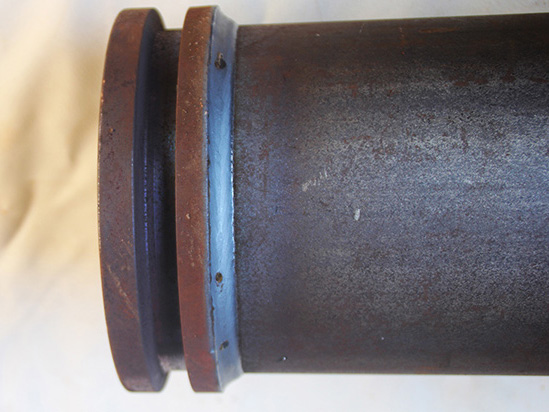

Any types of weld ends are available:
Metric (SK) weld ends

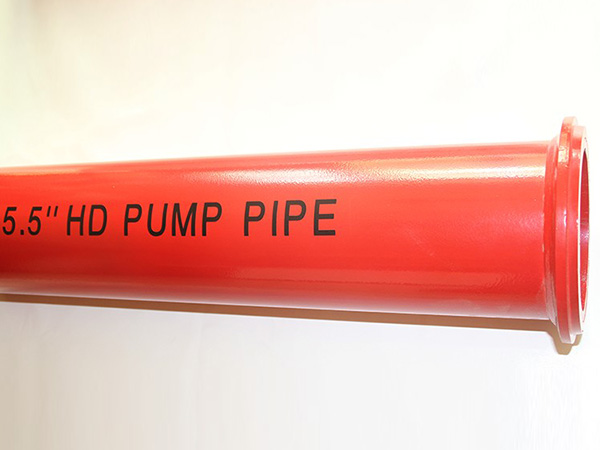

Heavy duty weld ends
Schwing F/M weld ends
Putzmeister Z/X weld ends
