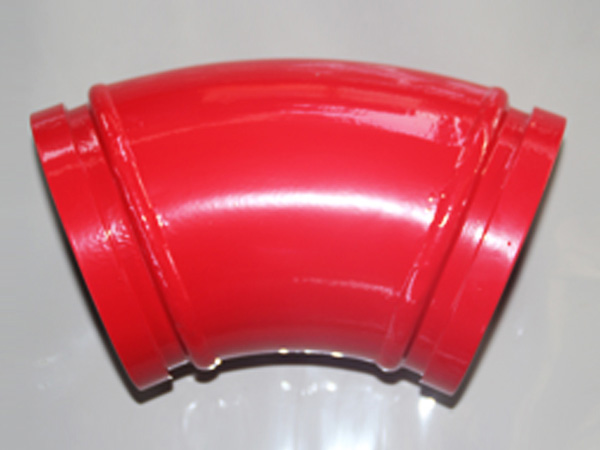

Twin Wall Elbow DN125 R275 45°

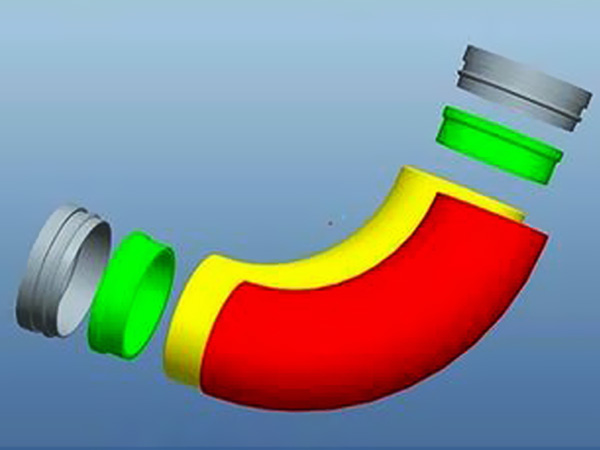

Material: high chromium alloy wear layer + ST52 protective layer

Ensure wear resistance and safety of the elbow

Production process: precision casting liner

Ensure your elbows are beautiful.

Accuracy: ±1 mm

Ensure the pipeline is installed smoothly.

Safety: 100% stress test

Ensure safe and efficient pumping

Product Details

Precision Casting

Part Number	Specification	Weight lbs/kgs	Liner Hardness	Dimension Tolerance	Pressure	Weld tensile strength	Surface coating
TWBE527545	DN125 R275 45°	18.3/8.3	Up to 62-65HRC	＜1mm ＜1°	160bar	＞580bar	Baking paint
TWBE527545	DN125 R275 45°	20/9.1	Up to 62-65HRC	＜1mm ＜1°	160bar	＞580bar	Baking paint
All boom elbows and deck elbow for PM, SCHWING, CIAF, JUNJIN, KCP etc are available.
