Line Pipe Reducer

Material: ST52/37Mn5

Ensure to meet different pumping environment requirements

Production process: Machining/ precision casting/welding

Ensure maximum service life in different pumping environments

Precision: ±1mm

Ensures smooth installation of the pipe.

Safety: 100% pressure test

Ensure safe and efficient pumping

CONTACT US
Product Details

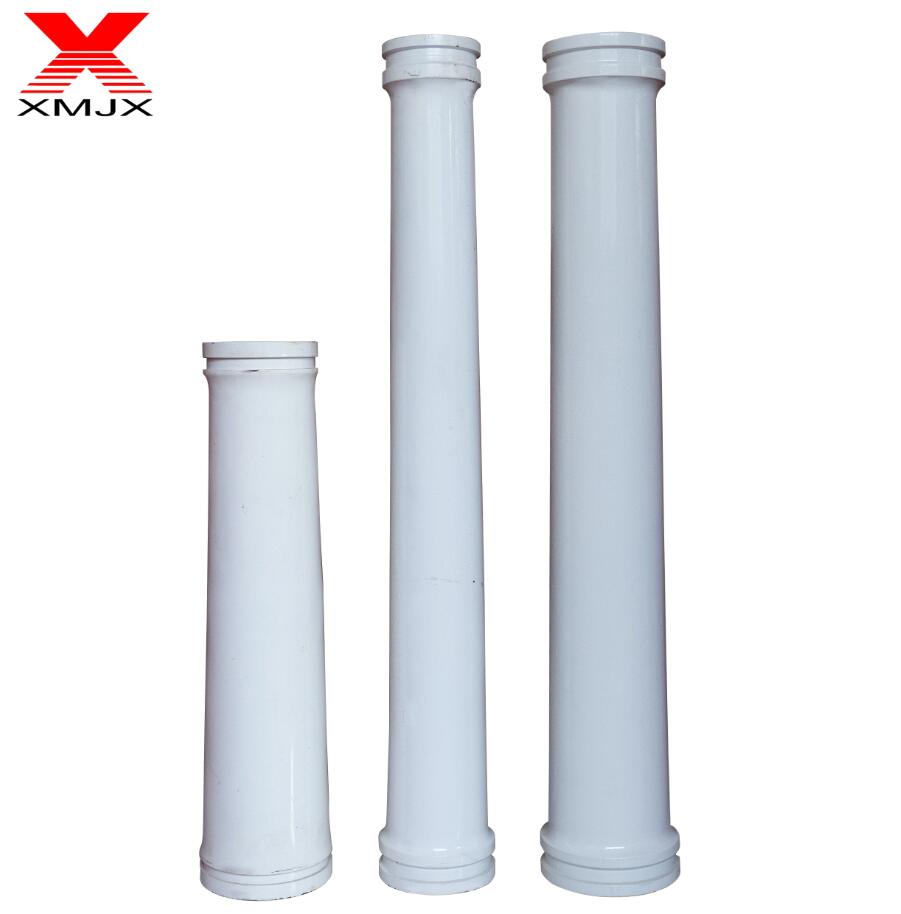

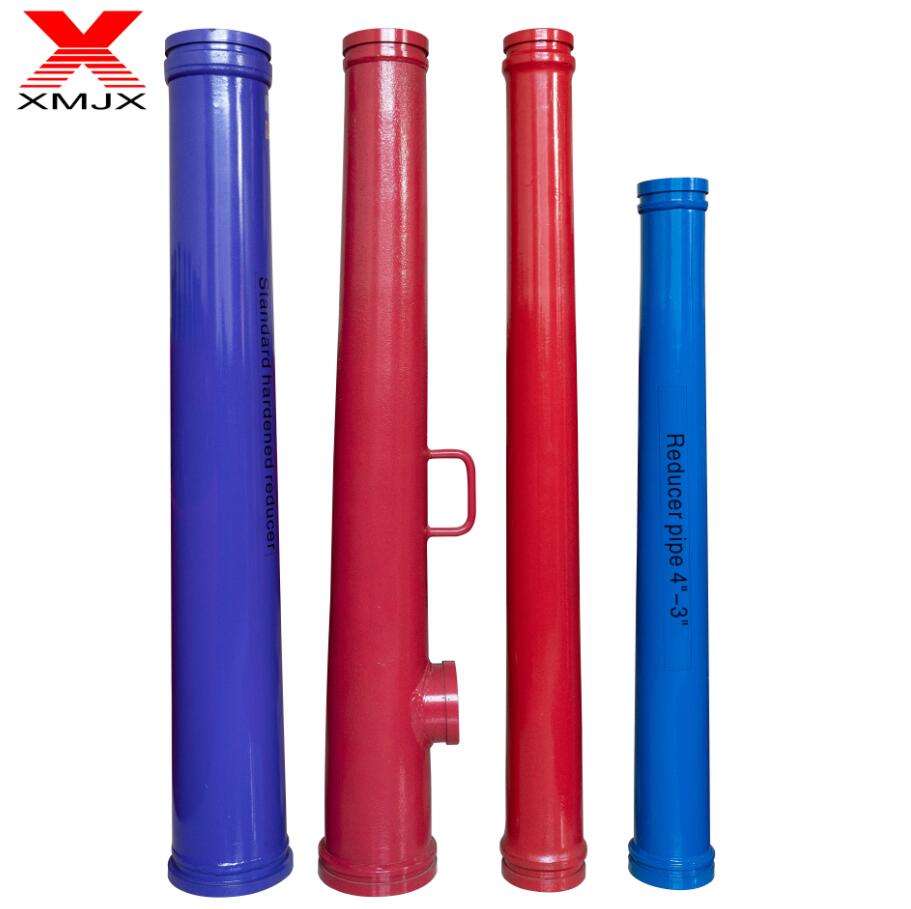

Line pipe reducer with HD/Metric flange ends

Part Number Specification Structure Material Approximately
Wall
Thickness (mm) 		Shipping Weight lbs/kg Manufacture process Dimension tolerance Pressure Weld tensile strength
RP2015122" x 1.5" 12"
Length		Single wall/ HD x HDST52/ 37Mn577.5/3.4Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP2520282.5" x 2" 28"
Length		Single wall/ HD x HDST52/ 37Mn5720/9.2Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP2520362.5" x 2" 36"
Length		Single wall/ HD x HDST52/ 37Mn5726/11.7Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP3020283" x 2" 28"
Length		Single wall/ HD x HDST52/ 37Mn5718.4/8.2Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP3020363" x 2"  36"
Length		Single wall/ HD x HDST52/ 37Mn5722.5/10.2Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP3025283" x 2.5"   28" LengthSingle wall/ HD x HDST52/ 37Mn5722.8/10.3Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP3025363" x 2.5" 36"
Length		Single wall/ HD x HDST52/ 37Mn5728.8/13.1Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP402036  4" x 2" 36"
Length		Single wall/ HD x HDST52/ 37Mn5728.8/13.1Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP4025364" x 2.5 36"
Length		Single wall/ HD x HDST52/ 37Mn5730/13.6Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP4030124" x 3" 12"
Length		Single wall/ HD x HDST52/ 37Mn5711.6/5.3Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP4030284" x 3" 28"
Length		Single wall/ HD x HDST52/ 37Mn5725/11.2Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP4030364" x 3" 36"
Length		Single wall/ HD x HDST52/ 37Mn5731/14.1Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP4035154" x 3.5" 15"
Length		Single wall/ HD x HDST52/ 37Mn5716.7/7.6Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP5030285" x 3" 28"
Length		Single wall/ HD x HDST52/ 37Mn5729.3/13.3Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP5030365" x 3" 36"
Length		Single wall/ HD x HDST52/ 37Mn5736.3/16.5Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP503036HH5" x 3" 36"
Length		Single wall/ HD x HDST52/ 37Mn5737.2/16.9Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP503036MH5" x 4" 12"
Length		Single wall/ HD x HDST52/ 37Mn5719/8.6Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP5040245" x 4" 24"
Length		Single wall/ HD x HDST52/ 37Mn5735/15.8Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP5040285" x 4" 28"
Length		Single wall/ HD x HDST52/ 37Mn5736/16.4Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP5040305" x 4" 30"
Length		Single wall/ HD x HDST52/ 37Mn5738.1/17.3Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP504036HH5" x 4" 36"
Length		Single wall/ HD x HDST52/ 37Mn5745.1/20.5Pushed/ Heat Treated＜1mm ＜1°85bar260bar
RP504036MH5" x 4" 36"
Length		Single wall/ HD x HDST52/ 37Mn5745.1/20.5Pushed/ Heat Treated＜1mm ＜1°85bar260bar
