Material: ST52/37Mn5/Mn13-4/High chromium alloy
Ensure to meet different pumping environment requirements
Production process: Machining/ precision casting/welding
Ensure maximum service life in different pumping environments
Precision: ±1mm
Ensures smooth installation of the pipe.
Safety: 100% pressure test
Ensure safe and efficient pumping

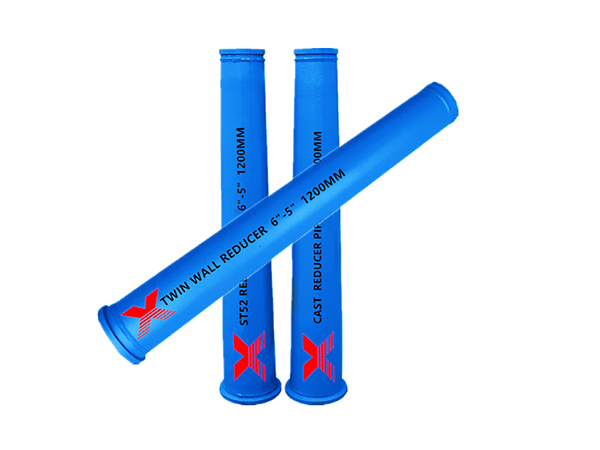

| ST52 Reducer Pipe 6"ZX Male-5" Metric 1200MM(47.25 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP1200ST52 | DN150-125×1200mm | Single wall | ST52 | 8 | 81/36.8 | Pushed/Automatic welding | ＜1mm ＜1° | 260bar | ＞890bar |
| HCCI Reducer Pipe (High chromium cast iron reducer pipe) 500MM(19.7 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP1200CCI | DN150-125×1200mm | Single wall | High chromium cast iron | 10 | 95.6/43.9 | Precision casting | ＜1mm ＜1° | 280bar | ＞890bar |
| Mn13-4 Reducer Pipe 500MM(19.7 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP1200MN13 | DN150-125×1200 | Single wall | Mn13-4 | 10 | 95.6/43.9 | Precision casting | ＜1mm ＜1° | 280bar | ＞890bar |
| Twin Wall Reducer Pipe 500MM(19.7 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP1200TW | DN150-125×1200 | Twin wall | chromium cast iron×6.0mm / ST52×4.0mm | 10 | 90/40.9 | UHF quenching (400KHz) | ＜1mm ＜1° | 200bar | ＞650bar |
