Products Features:
The most widely used concrete pumping line bend pipe.
Good wear resistance and ductility.
Ideal for high pressure pumping environments.
Key Specifications:
Measurement: DN100-4"
Material: ST52
Work Pressure: 160-250 Bar
Flange Ends: SK/HD/FM/ZX or Customize

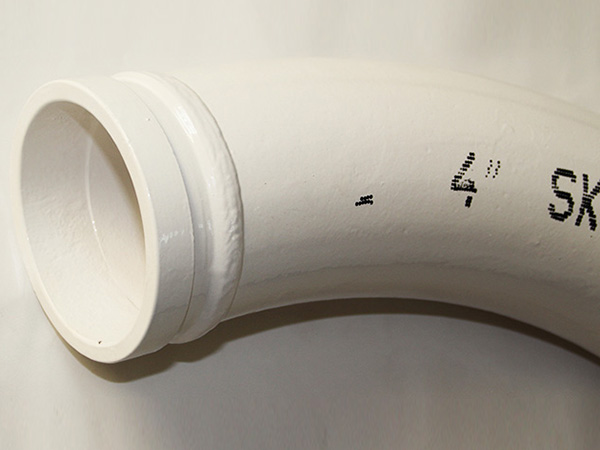

Bend Pipe DN100-4"
| Part NO. | OD In./DIN | Center Line Radius In./mm | Degree of Angle | Theoretical weight(lbs./kg.) |
| BP1001845 | 4.0/ DN100 | 18/457 | 45 | 18.3/8.3 |
| BP1001890 | 4.0/ DN100 | 18/457 | 90 | 32/14.5 |
| BP1003245 | 4.0/ DN100 | 32/813 | 45 | 32/14.6 |
| BP1003290 | 4.0/ DN100 | 32/813 | 90 | 54.6/24.8 |
| BP1004845 | 4.0/ DN100 | 48/1219 | 45 | 42.5/19.3 |
| BP1004890 | 4.0/ DN100 | 48/1219 | 90 | 74/33.6 |
| Any type of elbow can be customized. | ||||
| Any types of weld ends are available. | ||||
