Products Features:
The most widely used concrete pumping line pipe.
Good wear resistance and ductility.
Ideal for high pressure pumping environments.
Key Specifications:
Measurement: DN65/2.5"
Material: ST52
Work Pressure: 160-250 Bar

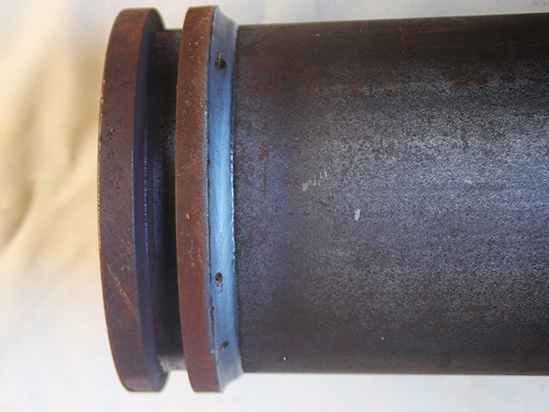

Flange Ends: SK/HD/FM/ZX or Customize
ST52 Line Pump Pipe DN65-2.5" With SK, HD, ZX, FM Flange Ends
| Part Number | Thickness(mm) | Theoretical weight(lbs./kg.)/meter | Length Deviation | Test Pressure | Weld Tensile Strength | Surface Coating |
| ST52-2530 | 3 | 12/5.4 | ±1mm | 160bar | ＞360bar | Painting |
| ST52-2535 | 3.5 | 13.8/6.3 | ±1mm | 180bar | ＞360bar | Painting |
| ST52-2540 | 4 | 15.6/7.1 | ±1mm | 160bar | ＞480bar | Painting |
| ST52-2545 | 4.5 | 17.5/7.9 | ±1mm | 180bar | ＞480bar | Painting |
| ST52-2550 | 5 | 19.3/8.8 | ±1mm | 250bar | ＞480bar | Painting |
| Length=1000mm | ||||||
| Any types of weld ends are available. | ||||||
