Products Features:
Good wear resistance and ductility.
Low cost, ideal for non-high pressure pumping environments.
Key Specifications:
Measurement: DN125/5"
Material: Q345 ERW-PIPE
Work Pressure: 85 Bar
Flange Ends: SK/HD/FM/ZX or Customize

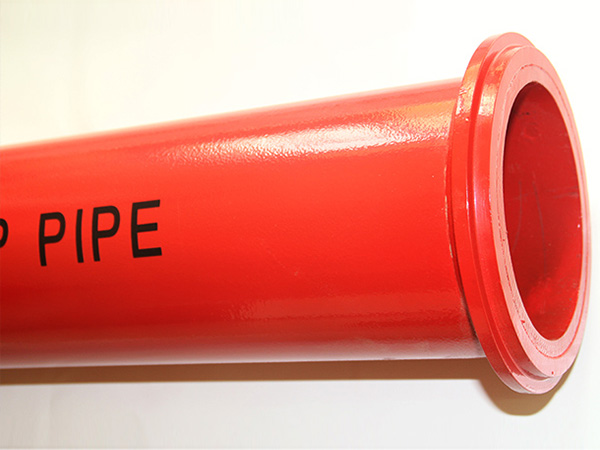

Q345 Line Pump Pipe DN125-5" With SK Flange Ends
| Part Number | Thickness(mm) | Theoretical weight(lbs./kg.)/meter | Length Deviation | Test Pressure | Weld Tensile Strength | Surface Coating |
| Q345-540 | 4 | 28/12.7 | ±1mm | 85bar | ＞360bar | Painting |
| Q345-545 | 4.5 | 31.5/14.3 | ±1mm | 85bar | ＞360bar | Painting |
| Q345-550 | 5 | 35/15.8 | ±1mm | 85bar | ＞360bar | Painting |
| Length=1000mm Length=2000mm Length=3048mm(Length=120 inch, Length=10 feet) Length=4500mm Length=6000mm ........ Any length and thickness can be customized. | ||||||

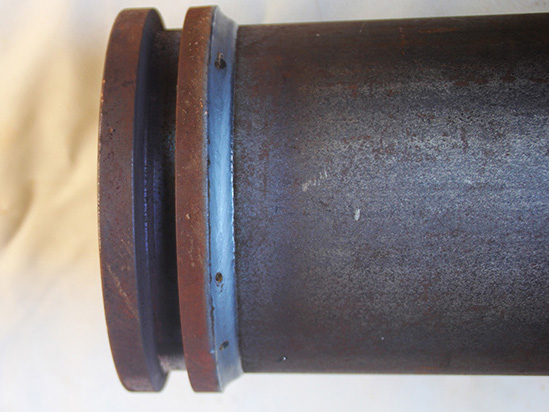

Any types of weld ends are available:
Metric (SK) weld ends
Heavy duty weld ends
