Material: ST52/37Mn5/Mn13-4/High chromium alloy
Ensure to meet different pumping environment requirements
Production process: Machining/ precision casting/welding
Ensure maximum service life in different pumping environments
Precision: ±1mm
Ensures smooth installation of the pipe.
Safety: 100% pressure test
Ensure safe and efficient pumping

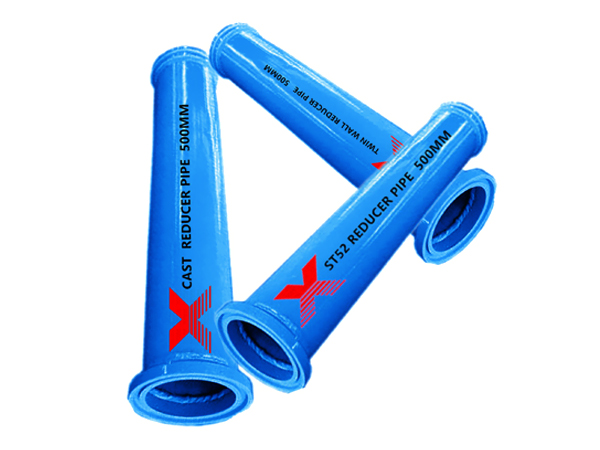

| ST52 Reducer Pipe 500MM (19.7 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP500ST52 | 150-125×500 | Single wall | ST52 | 8 | 31/14.1 | Pushed/Automatic welding | ＜1mm ＜1° | 260bar | ＞890bar |
| HCCI Reducer Pipe (High chromium cast iron reducer pipe) 500MM(19.7 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP500CCI | 150-125×500 | Single wall | High chromium cast iron | 10 | 35.6/16.2 | Precision casting | ＜1mm ＜1° | 280bar | ＞890bar |
| Mn13-4 Reducer Pipe 500MM(19.7 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP500MN13 | 150-125×500 | Single wall | Mn13-4 | 10 | 36/16.3 | Precision casting | ＜1mm ＜1° | 280bar | ＞890bar |
| Twin Wall Reducer Pipe 500MM(19.7 In.) | |||||||||
| Part Number | Specification | Structure | Material | Approximately Wall Thickness (mm) | Shipping Weight lbs/kg | Manufacture process | Dimension tolerance | Pressure | Weld tensile strength |
| RP500TW | 150-125×500 | Twin wall | chromium cast iron×6.0mm / ST52×4.0mm | 10 | 36/16.3 | UHF quenching (400KHz) | ＜1mm ＜1° | 200bar | ＞650bar |
